Automotive Water Pump Shaft Bearing CBK332 Water Pump Bearings WS2485 Motor Water Pump Shaft Bearings

Brand Name : SFT

Model Number : CBK332

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Precision Rating : P0 P6 P5 P4 P2

Seals Type : Sealed

Applicable Industries : Machinery Repair Shops, Retail

Bore Size : 1 - 16 mm

Product name : Automotive Water Pump Shaft Bearing CBK332

Material : Chrome steel ,Gcr15

Lubrication : 0.500 kg

Single package size : 0.2X0.3X0.4 cm

Single gross weight : 15*30*132mm

Contact Now

Product Description

Automotive Water Pump Shaft Bearing CBK332 Water Pump Bearings WS2485 Motor Water Pump Shaft Bearings

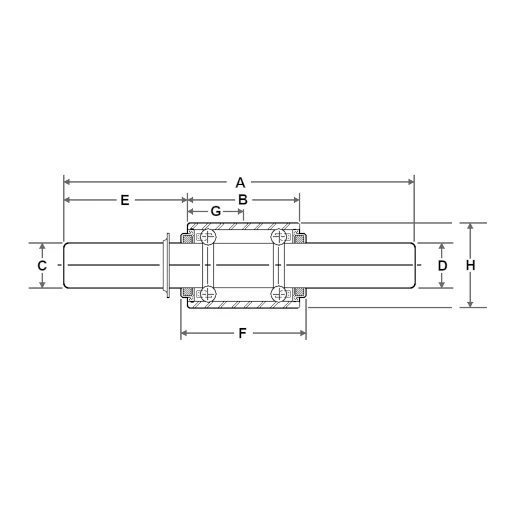

D	30 mm
H	57.1 mm
A	123.2 mm
d	15.918 mm
AH	25.3 mm

Water pump bearings.

Water pump bearings are mainly used for various automotive cooling water pumps. Since engines as the cores of automobiles are developing toward larger power, higher reliability and lower consumption of energy, cooling water pumps are also required to have higher heat-resisting quality, larger loading capacity, excellent running accuracy as well as satisfactory sealing performance, etc.

FCS water pump bearings are not only widely used for cooling water pumps for automobiles, similar products are also widely used in textile machinery, construction machine, etc.

What Are Water Pump Bearings?

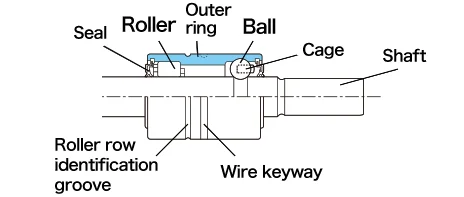

Water pump bearings are sealed double-row bearings with wide spacing between the two rows of rolling elements. There is a ball-ball type consisting of only balls and a ball-roller type consisting of a ball and a roller. Standard products have a keyway (groove) in the center of the outside surface of the outer ring for a wire (clip) to prevent the water pump bearing from coming off.

Ball-ball type Ball-roller type

Features

* 1.The profile of stepped shafts does not damage the shaft even if a large amount of force is applied from the belt.
* 2.A highly effective seal is used to prevent leakage of filled grease and prevent cooling water that leaks out from the mechanical seal from entering the bearing. Some use a highly-sealed triple-lip seal to further enhance the prevention of cooling water from entering.
* 3.The grease used has excellent durability in high-speed rotation, high-temperature, and mixed-water conditions, and the sealing material used has excellent compatibility with cooling water.

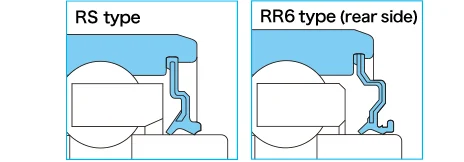

Standard seal structure

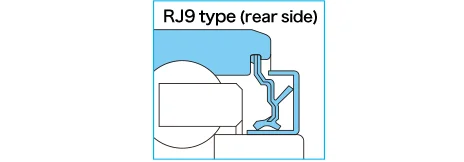

Highly sealed triple-seal structure
